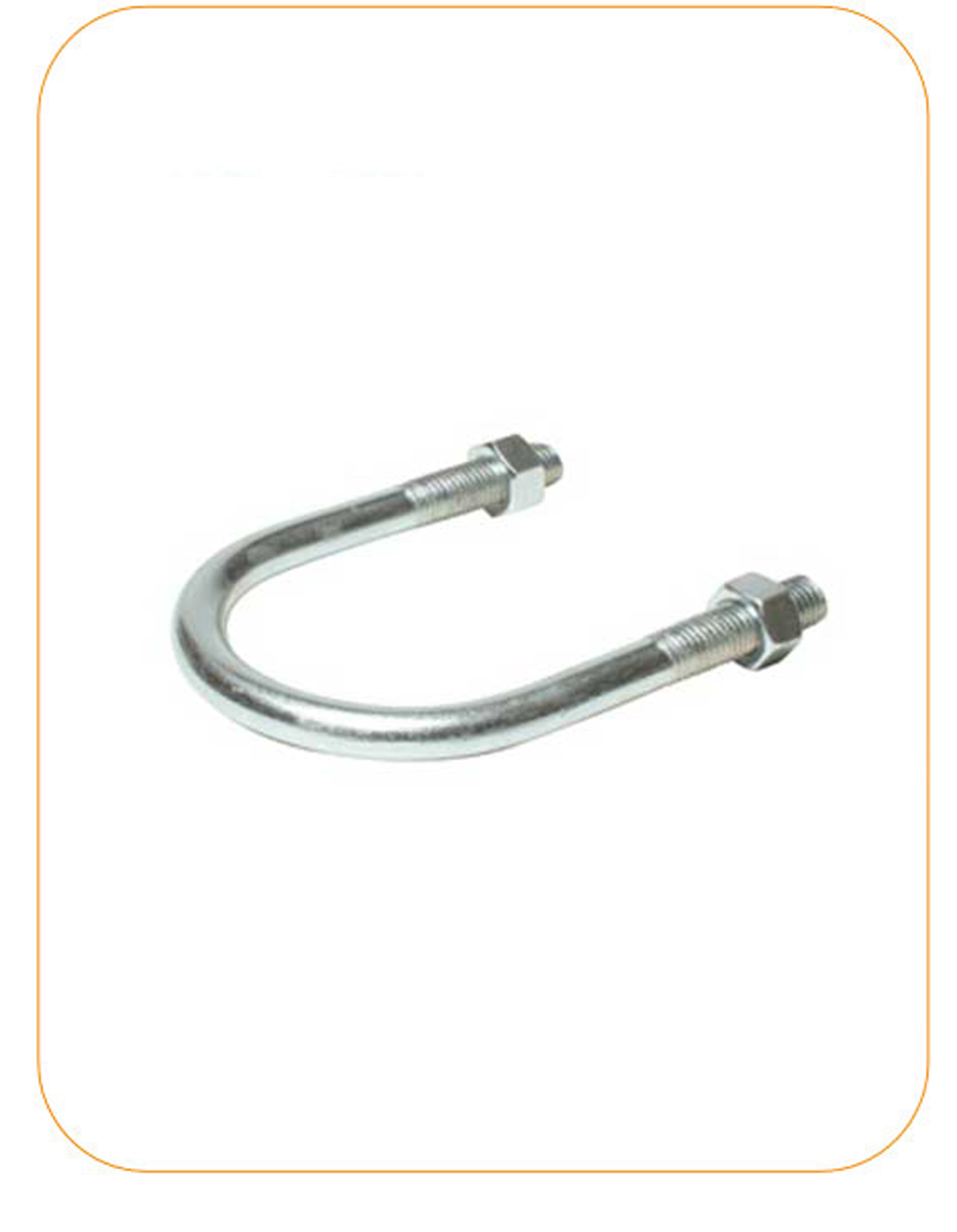

U-bolts are typically used to support pipework, tubing, round objects or to attach a part to a pole, beam or wall, where the “U” shape keeps it firmly in place, adding stability to the support.
They are also used as framing fasteners and anchors for foundations and roofs, conduit holders and bolts for motor and engine shaft components. They may even be used to hang wrought iron pipe in mechanical installations or act as anchor bolts to be embedded in concrete.
Square U bolts can also be fabricated to support systems that are square or flat in shape.
| Basic Product | Product Type & Head Style | Available Size Range | Thread & Dimension Refer To |
Properties And Requirements Refer To |
|---|---|---|---|---|
| Metric Studs | Double end | M6-M100 | ANSI B1.13M | ASTM A193M Gr B7, B7M, B16, B8, B8M CL 1 & 2; ASTM A320M Gr L7, L7M, B8, B8M CL 1 & 2; ISO 898/-1 Gr 8.8 |
| Continuous thread | M6-M100 | ANSI B1.13M | ASTM A193M B7, B7M, B16, B8, B8M CL 1 & 2; ASTM A320M Gr L7, L7M, B8, B8M CL 1 & 2; ISO 898/-1 Gr 8.8 | |
| Imperial Studs | Double end | 3/8”-4” | ANSI B1.1 | ASTM A193 Gr B7, B7M, B16, B8, B8M CL 1 & 2, ASTM A320 Gr L7, L7M, B8, B8M CL 1 & 2; AISI SS316, AISI SS304; ASTM A453 Gr 660 Cl A, B, C, D |
| Continuous thread | 3/8”-4” | ANSI B1.1 | ASTM A193 Gr B7, B7M, B16, B8, B8M CL 1 & 2, ASTM A320 Gr L7, L7M, B8, B8M CL 1 & 2; AISI SS316, AISI SS304; ASTM A453 Gr 660 Cl A, B, C, D |
