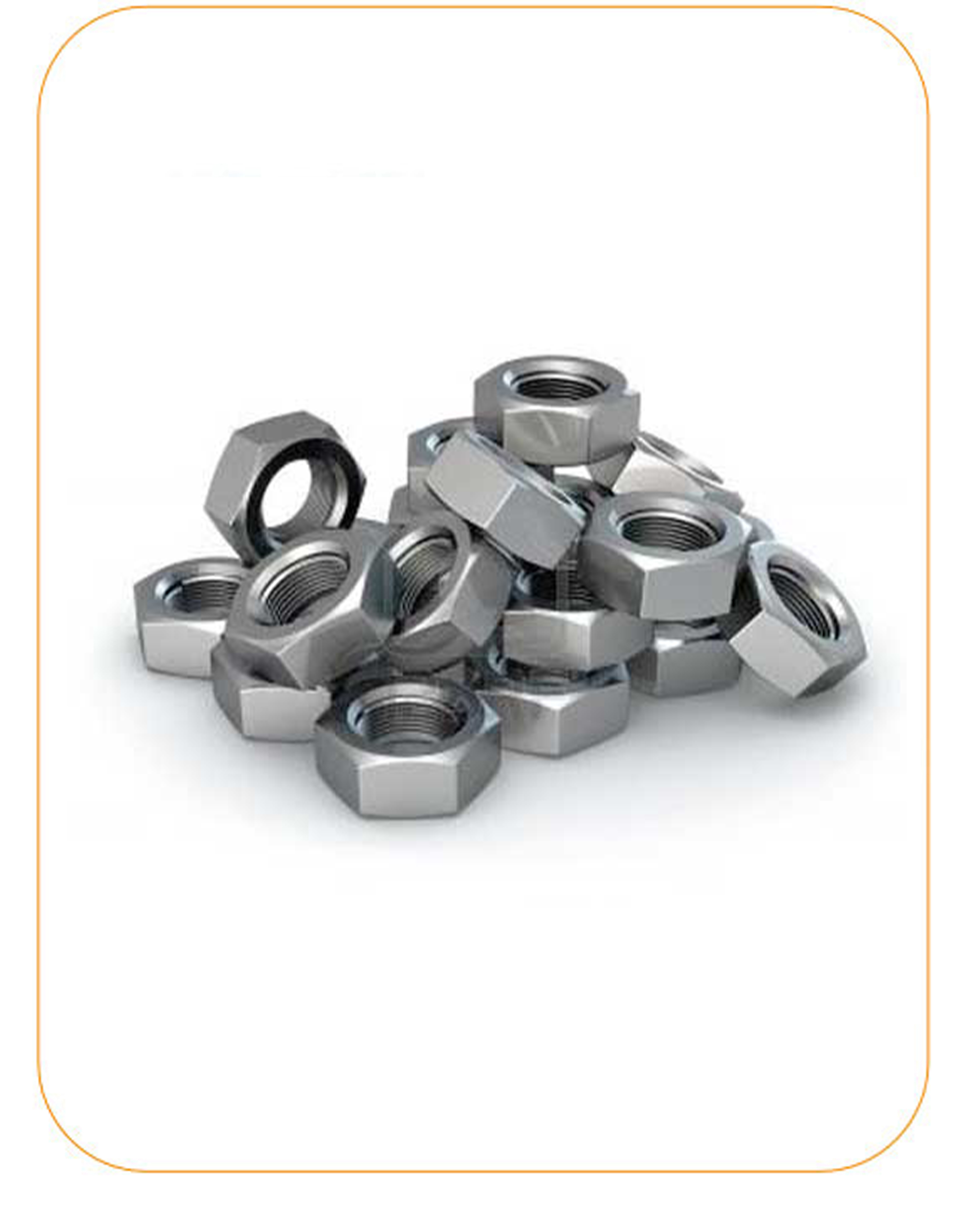

Hex Nuts are six sided hexagon nuts with internal threads, used for tightening bolts and screws. It can be used with all types of machine-thread fasteners including anchors, bolts, screws, studs and threaded rod.
| Basic Product | Product Type & Head Style | Available Size Range | Thread & Dimension Refer To |
Properties And Requirements Refer To |
|---|---|---|---|---|
| Metric Nuts | Hex | M6-M100 | ANSI B1.13M, DIN 934 |
ISO 898/-2 CL 8, 10 & 12; AISI SS316; AISI SS304 |
| Heavy Hex | M6-M100 | ANSI B1.13M |
ASTM A194M GR 2H, 2HM, 4, 7, 8, 8M; ASTM A563M GR 10S;
ASTM A453 GR 660 CL A,BC & D |
|
| Nylock | M3-M48 | ANSI B1.13M, DIN 985 |
ISO 898/-2 CL 8; AISI SS316, AISI SS304 |
|
| Jam / Thin / Lock | M3-M48 | ANSI B1.13M, DIN 936 | ASTM A194M, ASTM A563M |
|
| Cap | M3-M20 | ANSI B1.13M , DIN 1587 | AISI SS316, AISI SS304 |
|
| Imperial Nuts | Hex | ¼”-4” | ANSI B1.1, ASME B18.2.2 | AISI SS316, AISI SS304 |
| Heavy Hex | 3/8”-4” | ANSI B1.1, ASME B18.2.2 |
ASTM A194 2H, 2HM, 4, 7, 8, 8M; ASTM A563 DH |
|
| Jam / Thin / Lock | ¼”-4” | ANSI B1.1, ASME B18.2.2 | ISO 898/-2, AISI SS316, AISI SS304 |
We are committed towards the Quality of our products
