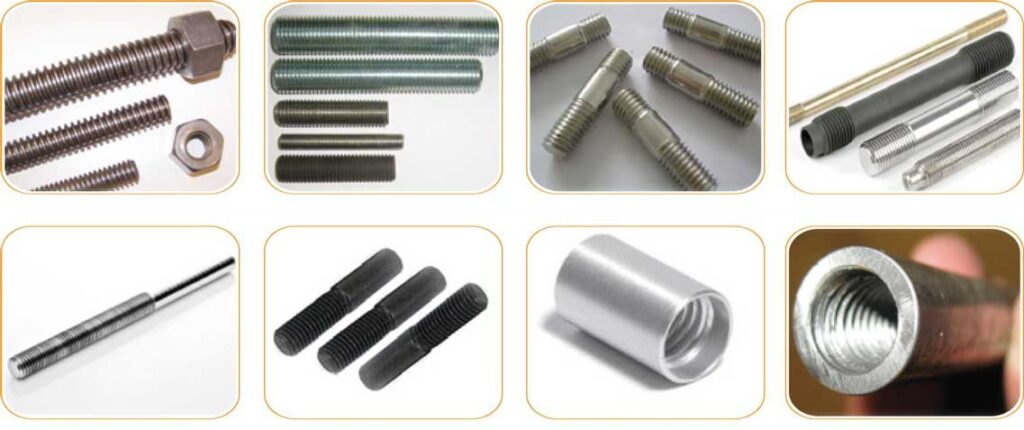

Threaded rod is made from round bar as per the specified grade and diameter. Standard diameter and grade threaded rod will typically be mass produced by a thread rolling machine. This process involves passing round bar through two hardened steel rollers to imprint the thread onto the round bar.
Stud Bolts are externally threaded fasteners without a head, normally used with 2 Hex nuts & 2 Flat washers on either sides as an assembly. Stud bolts are prominently used in flange connections and the diameter and length varies as per the flange dimensions.
Depending upon their design and threading patterns, there are different types of stud bolts as below.
| Basic Product | Product Type & Head Style | Available Size Range | Thread & Dimension Refer To |
Properties And Requirements Refer To |
|---|---|---|---|---|
| Metric Studs | Double end | M6-M100 | ANSI B1.13M | ASTM A193M Gr B7, B7M, B16, B8, B8M CL 1 & 2; ASTM A320M Gr L7, L7M, B8, B8M CL 1 & 2; ISO 898/-1 Gr 8.8 |
| Continuous thread | M6-M100 | ANSI B1.13M | ASTM A193M B7, B7M, B16, B8, B8M CL 1 & 2; ASTM A320M Gr L7, L7M, B8, B8M CL 1 & 2; ISO 898/-1 Gr 8.8 | |
| Imperial Studs | Double end | 3/8”-4” | ANSI B1.1 | ASTM A193 Gr B7, B7M, B16, B8, B8M CL 1 & 2, ASTM A320 Gr L7, L7M, B8, B8M CL 1 & 2; AISI SS316, AISI SS304; ASTM A453 Gr 660 Cl A, B, C, D |
| Continuous thread | 3/8”-4” | ANSI B1.1 | ASTM A193 Gr B7, B7M, B16, B8, B8M CL 1 & 2, ASTM A320 Gr L7, L7M, B8, B8M CL 1 & 2; AISI SS316, AISI SS304; ASTM A453 Gr 660 Cl A, B, C, D |
