Types of Anchor Bolts

• Straight Anchor bolts with
• base plates (non-welded)
• Straight Anchor bolts with base plates/Stiffener/Sleeve pipe (welded)
• ‘L’ and ‘J’ Type Anchor bolts
• Eye Bolts
• Fish Tail anchor etc.

Basic Product	Product Type & Head Style	Available Size Range	Thread & Dimension Refer To	Properties And Requirements Refer To

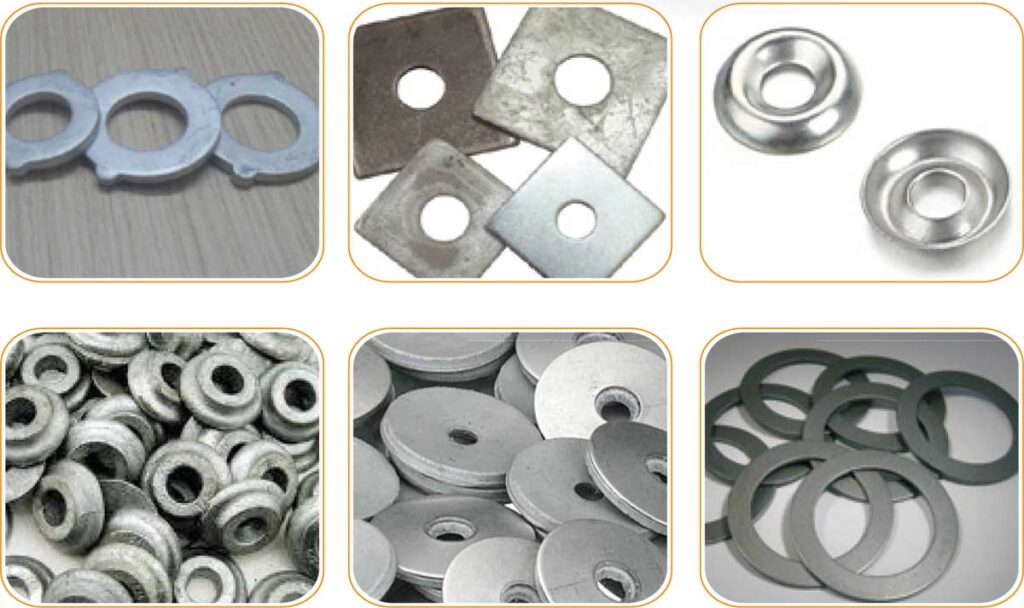

Washers	Flat	M4-M100	DIN 125, ASTM F436M	ASTM A36; ASTM F436/F436M; AISI SS316, AISI SS304
	Spring / Lock	M4-M100	DIN 127	ASTM A36, AISI SS316, AISI SS304
	Penny	M4-M100	DIN 9021	ASTM A36, AISI SS316, AISI SS304
	Nord Lock	NL3-NL130		EN 1.7182, EN 1.4404, EN 1.4547, EN 2.4819, EN 2.4667
